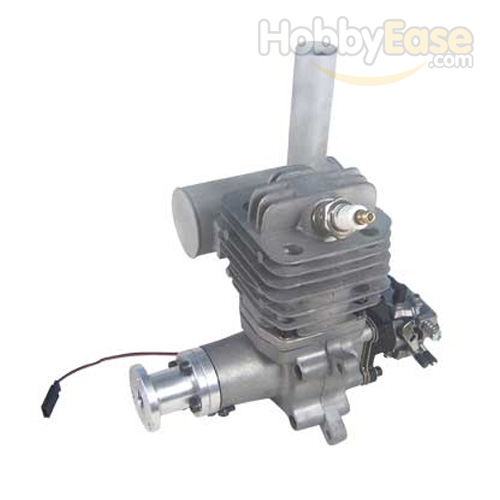

45CC Gas Engine

---

Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane
Piston displacement Cylinder (cc) : 45cc
Bore x Stroke (mm): 43mm x 31mm
Carburetor : Walbro Pump(made in Japan) & Made in China (Diaphragm butterfly valve type)
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-6V
Maximum Output : 4.3hp / 3.21KW
speed rang : 1500-7600rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 20*10 7000rpm (Standard Two leafs prop)
Cooling System : Air Cooled
Packing Weight :
N.W. (Including ignition and muffler ): 1550g
N.W. (Not including ignition and muffler) : 1375g
